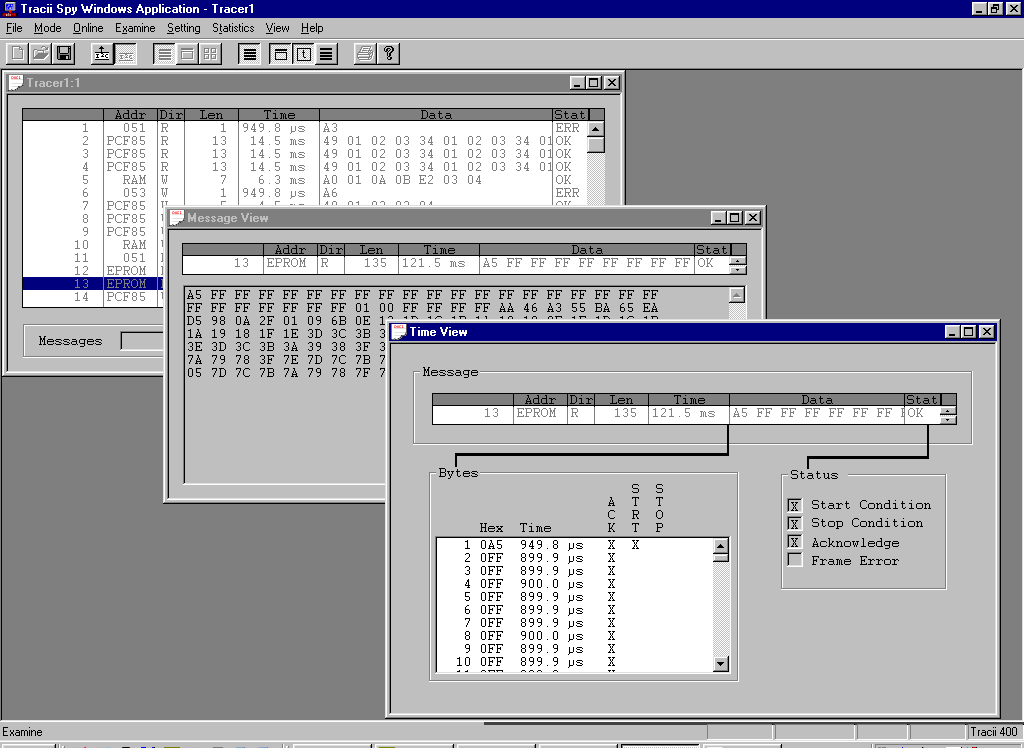

TraciiSpy is a full-featured Windows application offering highly advanced I2C bus monitoring capabilities for your Tracii 400. It supports all available tracing features contained in the Tracii 400 hardware. Key features include:
- Comprehensive modern Microsoft Windows application supporting Windows XP, 2000, NT, ME, 98 and 95
- Status indicators inform about connection mode and bus errors
- All Tracii 400 I2C bus monitoring features are supported and indicated
- Logging and export to process I2C messages in other applications
- Print function to make hard copies of your work
- Online help system
- Non-intrusive monitoring of I2C messages in real time with up to 800 kBit/s – even for long term
- Various filters available to select data during and after tracing
- Accurate time stamps for data within each message
- Comprehensive and adjustable display of I2C messages
- Detection and display of bus errors
- ASCII Export function for I2C messages
- Input Test pins to start I2C message transfer and Output Test pins to trigger external devices(e.g. oscilloscope)
- Advanced statistics feature (number of error bytes, messages etc.)
- Alias names to I2C slave addresses
You can easily evaluate TraciiSpy for free. Download the Tracii 400 software package which also contains TraciiTalk.
Download >>>
This tool supports the following I2C products
Each spy license is linked to a dedicated Tracii400 board.
Check the shop for purchasing details.
|
